Product Description

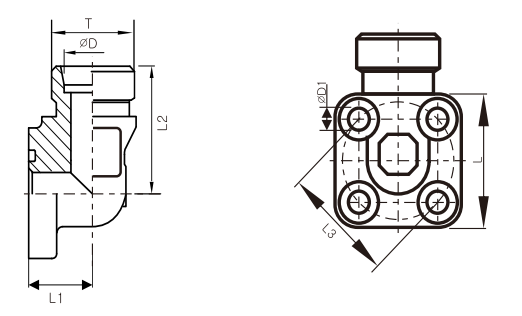

Elow Pump Flange Connection

PART NO.	THREAD	TUBE O.D	DIMENSIONS					Accessories		WORKING PRESSURE
	T1	TUDE O.D.	L	L1	L2	L3	D1	BOLT	O-RING	Mpa
ICFG9-16-35 ICFG9-18-35 ICFG9-22-35 ICFG9-26-35 ICFG9-22-40 ICFG9-26-35 ICFG9-30-40 ICFG9-36-40 ICFG9-45-40 IDFG9-24-35 IDFG9-30-35 IDFG9-30-40	M16X1.5 M18X1.5 M22X1.5 M26X1.5 M22 X1.5 M26X1.5 M30X2 M36X2 M45X2 M24X1.5 M30X2 M30X2	10 12 15 18 15 18 22 28 35 16 20 20	39 39 39 39 42 42 42 42 42 39 39 42	16.5 16.5 16.5 20.5 22.5 22.5 22.5 28 34 20 25 22.5	38 38 38 38 38 38 38 40 41 38 45 40	35 35 35 35 40 40 40 40 40 35 35 40	6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5	M6X22/M6X35 M6X22/M6X35 M6X22/M6X35 M6X22/M6X40 M6X22/M6X40 M6X22 M6X22 M6X22/M6X50 M6X22/M6X60 M6X22/M6X40 M6X22/M6X45 M6X22/M6X45	20X2.5 20X2.5 20X2.5 20X2.5 20X2.5 20X2.5 26X2.5 26X2.5 26X2.5 20X2.5 20X2.5 26X2.5	31.5 31.5 25 25 10 10 10 10 10 31.5 31.5 25
