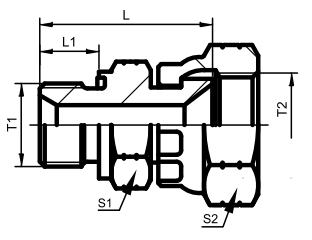

Metric Thread Male Captive Seal / JIC Female 74°Seat
| PART NO. | THREAD | DIMENSIONS | WEIGHT | WORKING PRESSURE | ||||
| T1 | T2 | L1 | L | S1 | 2 | g | ||
| 2MJ-10-04WD 2MJ-12-05WD 2MJ-14-06WD 2MJ-16-08WD 2MJ-22-08WD 2MJ-27-12WD 2MJ-33-16WD |
M10X1 M12X1.5 M14X1.5 M16X1.5 M22X1.5 M27X2 M33X2 |
7/16″X20 1/2″X20 9/16″X18 3/4″X16 7/8″X14 1.1/16″X12 1.5/16″X12 |
8 12 12 12 14 16 18 |
24 28.8 30.4 33.5 37.6 41.5 45.2 |
14 17 19 22 27 32 41 |
14 17 19 24 27 32 41 |
65 80 134 187 340 535 815 |
34.5 34.5 34.5 31 24 24 21 |
