Product Description

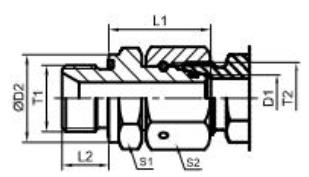

Metric Thread With Captive Seal or 60°Seat Sealing Metric Female 24° Cone O-Ring Sealing

PART NO.	THREAD		TUBE O.D		DIMENSIONS				WEIGHT	WORKING PRESSURE	SERIES
	T1	T2	D1	D2	L1	L2	S1	2	g/pc	(bar)
2MC-10-12WDW 2MC-12-14WDW 2MC-14-16WDW 2MC-16-18WDW 2MC-22-18WDW 2MC-18-22WDW 2MC-22WDW 2MC-22-26WDW 2MC-27-30WDW 2MC-33-36WDW 2MC-42-45WDW 2MC-48-52WDW 2MD-12-14WDW 2MD-14-16WDW 2MD_16-18WDW 2MD-18-20WDW 2MD-20-22WDW 2MD-22-24WDW 2MD-27-30WDW 2MD-33-36WDW 2MVD-42WDW 2MD-48-52WDW	M10x1 M12x1.5 M14x1.5 M16x1.5 M22x1.5 M18x1.5 M22x1.5 M22x1.5 M27x1.5 M33x2 M42x2 M48x2 M12x1.5 M14x1.5 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M27x2 M33x2 M42x2 M48x2	M12x1.5 M14x1.5 M16x1.5 M18x1.5 M18x1.5 M22x1.5 M22x1.5 M26x1.5 M30x2 M36x2 M45x2 M52x2 M14x1.5 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5 M30x2 M36x2 M42x2 M52x2	6 8 10 12 12 15 15 18 22 28 35 42 6 8 10 12 14 16 20 25 30 38	14 17 19 22 27 24 27 27 32 40 50 55 17 19 22 24 26 27 32 40 50 55	24.5 26.5 27.5 30.5 27 31.5 32 31.5 32.5 35 42.5 46.5 27 29.5 32 34 36.5 37 43 48 51 60	8 12 12 12 14 12 14 14 16 18 20 22 12 12 12 12 14 14 16 18 20 22	14 17 19 22 27 24 27 27 32 41 50 55 17 19 22 24 27 27 32 41 50 55	14 17 19 22 22 27 27 32 36 41 50 60 17 19 22 24 27 30 36 46 50 60	27 45 57 82 921 113 142 148 203 289 511 711 47 65 91 112 153 174 274 497 691 957	500 500 500 400 400 400 400 400 250 250 250 250 800 800 800 630 630 630 420 420 420 420	L L L L L L L L L L L L S S S S S S S S S S
