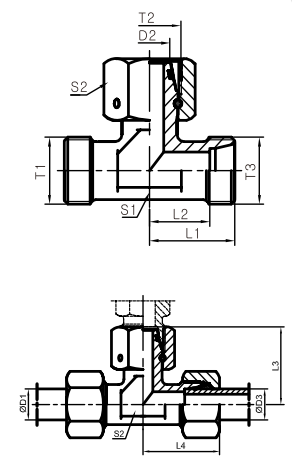

Branch Tee Fittings With Swivel Nut
| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | ||||||
| T1/T3/T2 | D1/D3 | D2 | L1 | L2 | L3 | L4 | S1 | S2 | g/pc | (bar) | ||
| BC-12W BC-14W BC-16W BC-18W BC-22W BC-26W BC-30W BC-36W BC-45W BC-62W BC-14W BC-16W BC-18W BC-20W BC-22W BC-24W BC-30W BC-36W BC-42W BC-52W |
M12 1.5 M14 1.5 M16 1.5 M18x1.5 M22 1.5 M26x1.5 M30 2 M36 2 M45 2 M52 2 M14 1.5 M16x1.5 M18 1.5 M20 1.5 M22 1.5 M24 1.5 M30 2 M36 2 M42 2 M52 2 |
6 8 10 12 15 18 22 28 35 42 6 8 10 12 14 16 20 25 30 38 |
6 8 10 12 15 18 22 28 35 42 6 8 10 12 14 16 20 25 30 38 |
19 21 22 24 28 31 35 38 45 51 23 24 25 29 30 33 37 42 49 57 |
12 14 15 17 21 23.5 27.5 30.5 34.5 40 16 17 17.5 21.5 22 24.5 26.5 30 35.5 41 |
26 27.5 29 29.5 32.5 35.5 38.5 41.5 51 56 27 27.5 30 31 35 36.5 44.5 50 55 60 |
27 29 30 32 36 40 44 47 56 63 31 32 34 38 40 43 48 54 62 72 |
12 12 14 17 19 24 27 36 41 50 12 14 17 17 19 24 27 36 41 50 |
14 17 19 22 27 32 36 41 50 60 17 19 22 24 27 30 36 46 50 60 |
42 53 71 97 159 239 308 449 679 1131 63 79 113 136 173 239 388 652 905 1462 |
500 500 500 400 400 400 250 250 250 250 800 800 800 630 630 630 420 420 420 420 |
L L L L L L L L L L S S S S S S S S S S |
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix”RN”after our ,for example BC-30W/RN
