90° Elbow Reducer Tube Adaptor With Swivel Nut

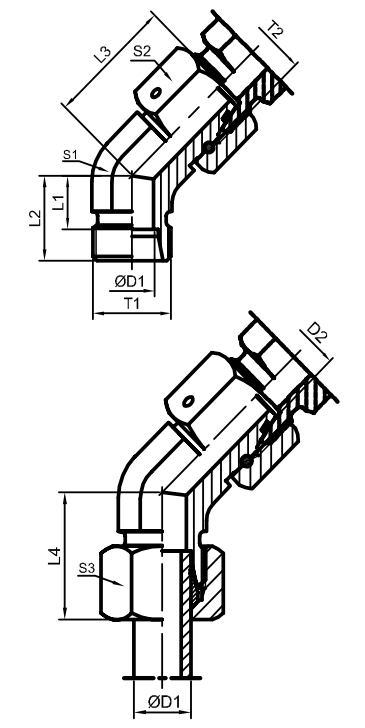

| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | ||||||
| T1 | T2 | D1/D2 | L1 | L2 | L3 | L4 | S1 | 2/S3 | g/pc | (bar) | ||
| 2C9-12W 2C9-14W 2C9-16W 2C9-18W 2C9-22W 2C9-26W 2C9-30W 2C9-36W 2C9-45W 2C9-52W 32D9-14W 2D9-16W 2D9-18W 2D9-20W 2D9-22W 2D9-24W 2D9-30W 2D9-36W 2D9 42W 2D9 52W |
M12 1.5 M14 1.5 M16 1.5 M18x1.5 M22 1.5 M26x1.5 M30 2 M36 2 M45 2 M52 2 M14x1.5 M16x1.5 M18 1.5 M20x1.5 M22 1.5 M24 1.5 M30 2 M36 2 M42 2 M52 2 |
M12 1.5 M14 1.5 M16 1.5 M18x1.5 M22 1.5 M26x1.5 M30 2 M36 2 M45 2 M52 2 M14 1.5 M16x1.5 M18x1.5 M20x1.5 M22 1.5 M24 1.5 M30 2 M36 2 M42 2 M52 2 |
6 8 10 12 15 18 22 28 35 42 6 8 10 12 14 16 20 25 30 38 |
19 21 22 24 28 31 35 38 45 51 23 24 25 29 30 33 37 42 49 57 |
12 14 15 17 21 23.5 27.5 30.5 34.5 40 16 17 17.5 21.5 22 24.5 26.5 30 35.5 41 |
26 27.5 29 29.5 32.5 35.5 38.5 41.5 51 56 27 27.5 30 31 35 36.5 44.5 50 55 63 |
27 29 30 32 36 40 44 47 56 63 31 32 34 38 40 43 48 54 62 72 |
12 12 14 17 19 24 27 36 41 50 12 14 17 17 19 24 27 36 41 50 |
14 17 19 22 27 32 36 41 50 60 17 19 22 24 27 30 36 46 50 60 |
34 43 58 81 128 197 258 370 593 993 48 65 92 107 146 212 309 547 744 1222 |
500 500 500 400 400 400 250 250 250 250 800 800 800 630 630 630 420 420 420 420 |
L L L L L L L L L L S S S S S S S S S S |
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix”RN”after our ,for example 2C9-30W/RN
