Product Description

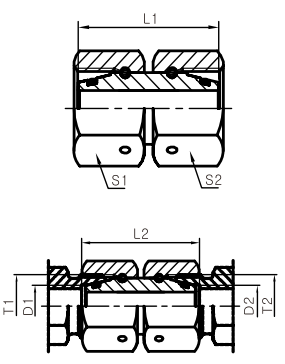

Straight Tube Adaptor With Swivel Nut

PART NO.	THREAD		TUBE O.D	DIMENSIONS			WEIGHT	WORKING PRESSURE
	T1	T2	D1/D2	L1	L2	S1/S2	g/pc	(bar)
3D-12W 3D-14W 3D-16W 3D-18W 3D-22W 3D-26W 3D-30W 3D-36W 3D-45W 3D-52W 30-14W 3D-16W 3D-18W 3D-20W 3D-22W 3D-24W 3D-30W 3D-36W 3D-42W 3D-52W	M12 1.5 M14 1.5 M16x1.5 M18 1.5 M22 1.5 M26 1.5 M30 2 M36 2 M45 2 M52 2 M14 1.5 M16 1.5 M18 1.5 M20 1.5 M22 1.5 M24 1.5 M30 2 M36 2 M42 2 M52 2	M12 1.5 M14x1.5 M16 1.5 M18x1.5 M22 1.5 M26x1.5 M30 2 M36 2 M45 2 M52 2 M14 1.5 M16 1.5 M18 1.5 M20 1.5 M22 1.5 M24 1.5 M30 2 M36 2 M42 2 M52 2	6 8 10 12 15 18 22 28 35 42 6 8 10 12 14 16 20 25 30 38	32 32 33 33 38 38 42 46 48 52 32 33 33 36 39 39 44 46 52 52	33 33 34 34 39 40 44 48 52 57 33 34 35 38 41 42 48 53 62 67	14 17 19 22 27 32 36 41 50 60 17 19 22 24 27 30 36 46 50 60	28 41 53 71 129 165 243 319 449 737 41 54 74 95 131 172 261 477 605 826	500 500 500 400 400 400 250 250 250 250 800 800 800 630 630 630 420 420 420 420
