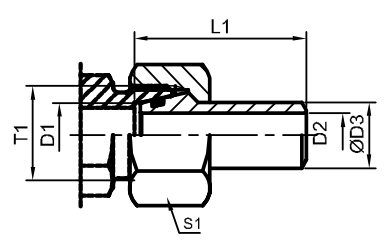

Reducer Tube Adaptor With Swivel Nut
| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | |||||
| T1 | T2 | D1/D2 | L1 | L2 | L3 | S1 | S2 S3 | g/pc | (bar) | ||
| 2C-12W 2C-14W 2C-16W 2C-18W 2C-22W 2C-26W 2C-30W 2C-36W 2C-45W 2C-52W 2D-14W 2D-16W 2D-18W 2D-20W 2D-22W 2D-24W 2D-30W 2D-36W 2D-42W 2D-52W |
M12 1.5 M14x1.5 M16 1.5 M18 1.5 M22 1.5 M26 1.5 M30 2 M36 2 M45 2 M52 2 M14 1.5 M16x1.5 M18 1.5 M20 1.5 M22 1.5 M24 1.5 M30 2 M36 2 M42 2 M52 2 |
M12 1.5 M14 1.5 M16 1.5 M18 1.5 M22 1.5 M26 1.5 M30 2 M36 2 M45 2 M52 2 M14 1.5 M16 1.5 M18 1.5 M20 1.5 M22 1.5 M24 1.5 M30 2 M36 2 M42 2 M52 2 |
6 8 10 12 15 18 22 28 35 42 6 8 10 12 14 16 20 25 30 38 |
36 36 36 36 36 36 40 40 50 60 36 36 36 36 40 40 46 50 56 60 |
43 43 43 43 43 43.5 47.5 47.5 60.5 71 43 43 43.5 43.5 48 48.5 56.5 62 69.5 76 |
51 51 51 51 51 52 56 57 72 83 51 51 52 52 58 58 68 74 83 91 |
12 14 17 19 24 27 32 41 46 55 14 17 19 22 24 27 32 41 46 55 |
14 17 19 22 27 32 36 41 50 60 17 19 22 24 27 30 36 46 50 60 |
33 46 60 75 118 153 210 279 468 802 48 64 81 97 133 166 265 466 601 871 |
500 500 500 400 400 400 250 250 250 250 B00 800 800 630 630 630 420 420 420 420 |
L L L L L L L L L L S S S S S S S S S S |
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffx”RN”after our ,for example 2C-30/RN
