American JC internal thread 74° internal cone double hexagon
| Code PART NO. |

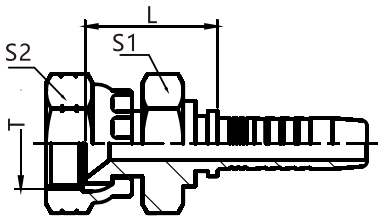

Thread T | Hose Bore | Dimensions | |||
| THREAD T | Nominal Inner Diameter DN | Dash Number | L | S1 | S2 | |
| 26711D-04-04 26711D-05-04 26711D-06-04 26711D-06-06 26711D-08-06 26711D-08-08 26711D-08-10 26711D-10-08 26711D-10-10 26711D-12-12 26711D-16-12 26711D-16-16 26711D-16-20 26711D-20-20 |
7/16″X20 1/2 “X20 9/16″X18 9/16″X18 3/4″X16 3/4″ X16 3/4 ” X16 7/8″ X14 7/8″X14 1.1/16″X12 1.5/16″X12 1.5/16 ” X12 1.5/16″X12 1.5/8″X12 |
6 6 6 10 10 13 16 13 16 19 19 25 32 32 |
4 4 4 6 6 8 10 8 10 12 12 16 20 20 |
20 20.5 21 21 25 24.5 25.5 28 29 31.5 33.5 34.5 36.5 39 |
14 17 19 19 24 24 24 27 27 32 41 41 41 50 |
14 17 19 19 22 22 22 27 27 32 41 41 41 50 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for spiral hoses, change the code to 26712D-XX-XX.
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is S26712D-XX-XX.
