SAE Flange 6000 PS162 Type
| Code PART NO. |

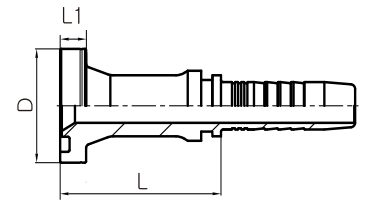

Flange Model | Hose Bore | Dimensions | |||
| FLANGE SIZE | Nominal Inner Diameter DN | Dash Number | L | D | L1 | |
| 87611-08-08 87611-12-10 87611-12-12 87611-16-12 87611-16-16 87611-16-20 87611-20-16 87611-20-20 87611-24-20 87611-24-24 87611-32-24 87611-32-32 |
1/2″ 3/4″ 3/4″ 1″ 1″ 1″ 1.1/4″ 1.1/4″ 1.1/2″ 1.1/2″ 2″ 2″ |
13 16 19 19 25 32 25 32 32 38 38 51 |
8 10 12 12 16 20 16 20 20 24 24 32 |
47 51 51 56 57 58 65 66 75 75 85 85 |
31.7 41.3 41.3 47.6 47.6 47.6 54 54 63.5 63.5 79.4 79.4 |
7.75 8.76 8.76 9.53 9.53 9.53 10.29 10.29 12.57 12.57 12.57 12.57 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 87612-XX-XX.
