45° Metric Internal Thread 24° Taper with O-ring Heavy Series
| Code PART NO. |
Thread T | Hose Bore | Tube Outer Diameter | Dimensions | |||

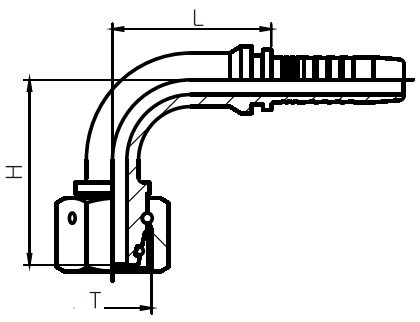

| THREAD T | Nominal Inner Diameter DN | Dash Number | TUBE O.D | L | H | S1 | |
| 20591-14-04T 20591-16-04T 20591-16-05T 20591-18-04T 20591-18-05T 20591-18-06T 20591-20-06T 20591-20-08W 20591-22-06T 20591-24-06T 20591-24-08T 20591-30-10T 20591-30-12T 20591-36-12T 20591-36-16T 20591-42-12T 20591-42-16T 20591-42-20W 20591-52-20T 20591-52-24T |
M14X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M18X1.5 M20X1.5 M20X1.5 M22X1.5 M24X1.5 M24X1.5 M30X2 M30X2 M36X2 M36X2 M42X2 M42X2 M42X2 M52X2 M52X2 |
6 6 8 6 8 10 10 13 10 10 13 16 19 19 25 19 25 32 32 38 |
4 4 5 4 5 6 6 8 6 6 8 10 12 12 16 12 16 20 20 24 |
6 8 8 10 10 10 12 12 14 16 16 20 20 25 25 30 30 30 38 38 |
32 32 32.5 32 32.5 36.5 36.5 44.5 36.5 44.5 44.5 55 62 62 74 74 74 91.5 91.5 108 |
32 32 34 32 34 35.5 35.5 43 43 43 43 49.5 59 59 70 70 70 87 87 100 |
17 19 19 22 22 22 24 24 27 30 30 36 36 46 46 50 50 50 60 60 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 20592-XX-XX.
