26711

American JC internal thread 74° internal cone surface

Get prices +86 18331807383

Product Description

American JC internal thread 74° internal cone surface

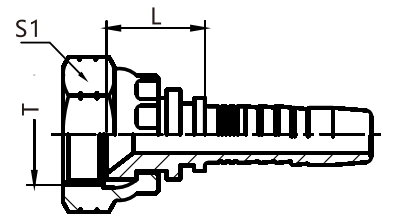

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	L	S1
26711-04-04 26711-05-04 26711-05-05 26711-06-04T 26711-06-05 26711-06-06 26711-07-06 26711-08-06T 26711-08-08 26711-08-10 26711-10-08T 26711-10-10 26711-10-12 26711-12-08T 26711-12-10T 26711-12-12 26711-14-12T 26711-16-12T 26711-16-16 26711-20-16T 26711-20-20 26711-24-20T 26711-24-24 26711-32-24T 26711-32-32T	7/16″X20 1/2″X20 1/2″X20 9/16″X18 9/16″X18 9/16″X18 9/16″X18 3/4″X16 3/4″X16 3/4″ X16 7/8″X14 7/8″ X14 7/8 ” X14 1.1/16″X12 1.1/16″X12 1.1/16″X12 1.3/16″X12 1.5/16″X12 1.5/16″X12 1.5/8″X12 1.5/8″X12 1.7/8″X12 1.7/8″X12 2.1/2″X12 2.1/2″X12	6 6 8 6 8 10 13 10 13 16 13 16 19 13 16 19 19 19 25 25 32 32 38 38 51	4 4 5 4 5 6 8 6 8 10 8 10 12 8 10 12 12 12 16 16 20 20 24 24 32	15 15.5 15.5 15.5 15.5 15.5 16 17.5 18 19 18 20 20 20 21.5 21.5 21.5 22 23 25 26 26.5 26.5 26.5 27	14 17 17 19 19 19 19 22 22 22 27 27 27 32 32 32 36 41 41 50 50 60 60 75 75
