Product Description

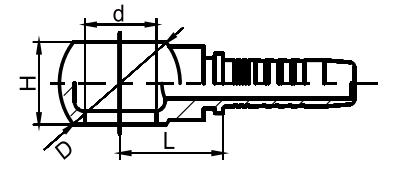

Imperial articulated body

Code PART NO.	Bolt	Hose bore		Dimensions
	BOLT	Nominal inner diameter DN	Dash number	L	d	D	H
72011-04-04 72011-04-05 72011-04-06 72011-06-04 72011-06-05 72011-06-06 72011-06-08 72011-08-05 72011-08-06 72011-08-08 72011-08-10 72011-10-10 72011-12-10 72011-12-12 72011-16-08 72011-16-12 72011-16-16	G1/4″X19 G1/4 ” X19 G1/4″X19 G3/8 “X19 G3/8″X19 G3/8 ° X19 G3/8″X19 G1/2 ” X14 G1/2″X14 G1/2 ” X14 G1/2″X14 G5/8″X14 G3/4″X14 G3/4″X14 G1″X11 G1″X11 G1″ X11	6 8 10 6 8 10 13 8 10 13 16 16 16 19 13 19 25	4 5 6 4 5 6 8 5 6 8 10 10 10 12 8 12 16	19.5 19.5 22 22 22 22 23.5 27.5 27.5 27.5 28.5 28 32 32 40 40 41	13.3 13.3 13.3 16.7 16.7 16.7 16.7 21 21.2 21.2 21.2 23 26.5 26.5 33.3 33.3 33.3	24 24 24 29 29 29 28 35 35 36 36 40 48 48 48 54 54	14 14 14 18 20 20 20 22 22 25 25 27 31 31 36 36 36
