SAE Flange 3000 PSI
| Code PART NO. |
Flange Model | Hose Bore | Dimensions | ||||

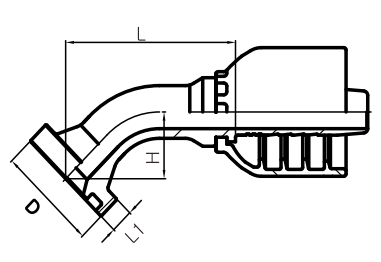

| FLANGE SIZE | Nominal Inner Diameter DN | Dash Number | L | H | D | L1 | |
| 87341-08-08RW 87341-12-08RW 87341-12-10RW 87341-12-12RW 87341-12-16RW 87341-16-12RW 87341-16-16RW 87341-16-20RW 87341-20-16RW 87341-20-20RW 87341-24-20RW 87341-24-24RW 87341-32-24RW 87341-32-32RW |
1/2″ 3/4″ 3/4″ 3/4″ 3/4″ 1″ 1″ 1″ 1.1/4″ 1.1/4″ 1.1/2″ 1.1/2″ 2″ 2″ |
13 13 16 19 25 19 25 32 25 32 32 38 38 51 |
8 8 10 12 16 12 16 20 16 20 20 24 24 32 |
50.3 57.3 65.2 68.7 79.4 74.7 81.4 95.8 87.4 98.8 104.75 115.1 127.1 141 |
19 26 26 26 30 32 32 35 38 38 44 44 56 56 |
30.2 38.1 38.1 38.1 38.1 44.4 44.4 44.4 50.8 50.8 60.3 60.3 71.4 71.4 |
6.73 6.73 6.73 6.73 6.73 8 8 8 8 8 8 8 9.53 9.53 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 87342-XX-XXRW.
