20791
90° national standard metric internal thread 74° internal cone surface
90° national standard metric internal thread 74° internal cone surface
| Code PART NO. |
Thread T | Hose Bore | Dimensions | |||

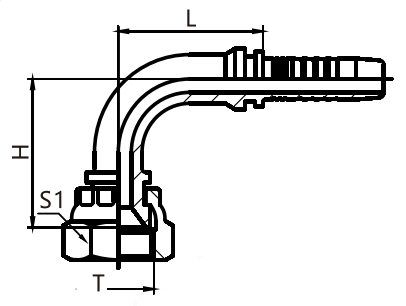

| THREAD T | Nominal Inner Diameter DN | Number DASH | L | H | S1 | |
| 20791-12-04 20791-14-04T 20791-14-05 20791-14-06 20791-16-04T 20791-16-05T 20791-16-06 20791-18-05T 20791-18-06T 20791-22-08T 20791-27-08T 20791-27-10T 20791-30-10T 20791-30-12T 20791-33-12T 20791-36-12T 20791-36-14T 20791-36-16T 20791-39-16T 20791-45-20T 20791-52-24T |
M12X1.5 M14X1.5 M14X1.5 M14X1.5 M16X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M22X1.5 M27X1.5 M27X1.5 M30X1.5 M30X1.5 M33X2 M36X2 M36X2 M36X2 M39X2 M45X2 M52X2 |
6 6 8 10 6 8 10 8 10 13 13 16 16 19 19 19 22 25 25 32 38 |
4 4 5 6 4 5 6 5 6 8 8 10 10 12 12 12 14 16 16 20 24 |
32 30 33 36.5 32 33 36.5 33 36.5 43.5 43.5 55 55 64 64 64 68.5 74 74 91.5 109 |
30 30 37 38.5 32.5 36 39.5 38.5 40.5 46.5 48.5 53 54 62 61 57 63 64 66 78.5 92 |
17 17 19 19 19 19 22 22 22 27 32 32 36 36 41 41 41 41 46 55 60 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 20792-XX-XX.
