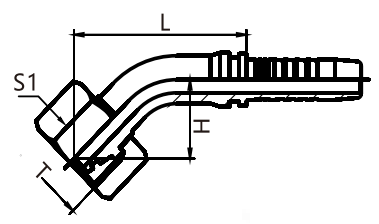

45° Metric Internal Thread 24° Taper with O-ring Heavy Series
| Code PART NO. |
Thread T | Hose Bore | Tube Outer Diameter | Dimensions | |||
| THREAD T | Nominal Inner Diameter DN | Dash Number | TUBE O.D | L | H | S1 | |
| 20541-14-04T 20541-16-04T 20541-16-05T 20541-18-04T 20541-18-05T 20541-18-06T 20541-20-06T 20541-20-08W 20541-22-06T 20541-24-06T 20541-24-08T 20541-30-10T 20541-30-12T 20541-36-12T 20541-36-16T 20541-42-12T 20541-42-16T 20541-42-20W 20541-52-20T 20541-52-24T |
M14X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M18X1.5 M20X1.5 M20X1.5 M22X1.5 M24X1.5 M24X1.5 M30X2 M30X2 M36X2 M36X2 M42X2 M42X2 M42X2 M52X2 M52X2 |
6 6 8 6 8 10 10 13 10 10 13 16 19 19 25 19 25 32 32 38 |
4 4 5 4 5 6 6 8 6 6 8 10 12 12 16 12 16 20 20 24 |
6 8 8 10 10 10 12 12 14 16 16 20 20 25 25 30 30 30 38 38 |
40.8 40.8 41.7 40.8 41.7 44.5 44.5 52.3 48.9 44.5 52.3 64.2 73.2 73.2 84.9 78.2 84.9 102.75 102.75 115.7 |
17 17 18 17 18 18.5 18.5 21 22.9 18.5 21 25 30.5 30.5 35.5 35.5 35.5 42 42 44.6 |
17 19 19 22 22 22 24 24 27 30 30 36 36 46 46 50 50 50 60 60 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 20542-XX-XX.
