20741-T
45° national standard metric internal thread 74° internal cone surface
45° national standard metric internal thread 74° internal cone surface
| Code PART NO. |

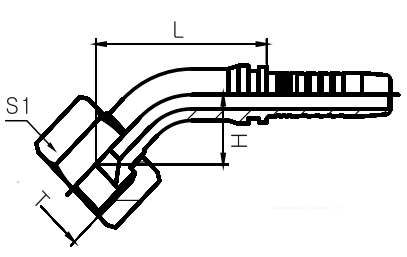

Thread T | Hose Bore | Dimensions | |||
| THREAD T | Nominal Inner Diameter DN | Dash Number | L | H | S1 | |
| 20741-12-04 20741-14-04T 20741-14-05 20741-14-06 20741-16-04T 20741-16-05T 20741-16-06 20741-18-05T 20741-18-06T 20741-22-08T 20741-27-08T 20741-27-10T 20741-30-10T 20741-30-12T 20741-33-12T 20741-36-12T 20741-36-14T 20741-36-16T 20741-39-16T 20741-45-20T 20741-52-24T |
M12X1.5 M14X1.5 M14X1.5 M14X1.5 M16X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M22X1.5 M27X1.5 M27X1.5 M30X1.5 M30X1.5 M33X2 M36X2 M36X2 M36X2 M39X2 M45X2 M52X2 |
6 6 8 10 6 8 10 8 10 13 13 16 16 19 19 19 22 25 25 32 38 |
4 4 5 6 4 5 6 5 6 8 8 10 10 12 12 12 14 16 16 20 24 |
38 39 43.5 46 39 42.5 46.5 44.5 47 56.2 55 63.5 67 72.8 72 69.5 74 81 82 94.5 108| |
15 16 19.5 20 15.5 19 20.5 21 23 23.7 22.5 24 27 30.2 29.5 26.5 28.4 28 29.4 33.8 39 |
17 17 19 19 19 19 22 22 22 27 32 32 36 36 41 41 41 41 46 55 60 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 20742-XX-XX.
