Product Description

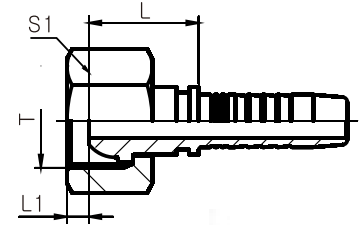

Metric internal thread spherical

Code PART NO.	Thread T	Hose bore		Dimensions
	THREAD T	Nominal internal diameter DN	Designation DASH	L	S1
20111-12-04 20111-12-05 20111-14-04T 20111-14-05 20111-16-04T 20111-16-05T 20111-18-06T 20111-18-08 20111-22-08T 20111-24-10 20111-27-10T 20111-30-12T 20111-39-16T 20111-45-20T 20111-52-24T	M12X1.5 M12X1.5 M14X1.5 M14X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M22X1.5 M24X1.5 M27X1.5 M30X1.5 M39X2 M45X2 M52X2	6 8 6 8 6 8 10 13 13 16 16 19 25 32 38	4 5 4 5 4 5 6 8 8 10 10 12 16 20 24	19.5 19.5 19.5 19.5 20 20 20.5 22 22.8 25.5 23.5 24.5 29.5 31.5 33	17 17 17 19 19 19 22 24 27 30 32 36 46 55 60

Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, the code changes to 20112-XX-XX
