20711-T

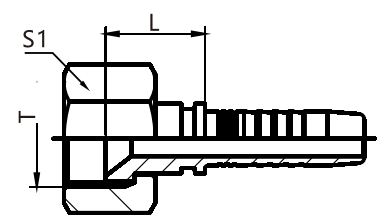

National standard metric internal thread 74° internal cone surface
National standard metric internal thread 74° internal cone surface
| Code PART NO. |
Thread T | Hose Bore | Dimensions | ||
| THREAD T | Nominal Inner Diameter DN | Mark D | L | S1 | |
| 20711-12-04 20711-14-04T 20711-14-05 20711-14-06 20711-16-04T 20711-16-05T 20711-16-06 20711-18-05T 20711-18-06T 20711-20-06T 20711-22-08T 20711-27-08T 20711-27-10T 20711-30-10T 20711-30-12T 20711-33-12T 20711-36-12T 20711-36-14T 20711-36-16T 20711-39-16T 20711-42-16T 20711-45-20T 20711-52-24T |
M12X1.5 M14X1.5 M14X1.5 M14X1.5 M16X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M20X1.5 M22X1.5 M27X1.5 M27X1.5 M30X1.5 M30X1.5 M33X2 M36X2 M36X2 M36X2 M39X2 M42X2 M45X2 M52X2 |
6 6 8 10 6 8 10 8 10 10 13 13 16 16 19 19 19 22 25 25 25 32 38 |
4 4 5 6 4 5 6 5 6 6 8 8 10 10 12 12 12 14 16 16 16 20 24 |
14.5 15.5 15.5 15.5 16.5 16.5 16.5 18.5 17.5 16 18.5 20.5 21.5 21.5 21.5 22 21 21 22 23.5 23.5 25 25 |
17 17 19 19 19 19 22 22 22 24 27 32 32 36 36 41 41 41 41 46 50 55 60 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, the code changes to 20712-XX-XX.
