22691-RW

90° British pipe internal thread 60° external conical surface

Get prices +86 18331807383

Product Description

90° British pipe internal thread 60° external conical surface

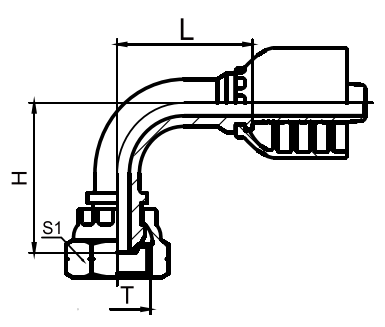

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	L	H	S1
22691-02-04RW 22691-04-04RW 22691-04-05RW 22691-04-06RW 22691-06-04RW 22691-06-05RW 22691-06-06RW 22691-08-08RW 22691-10-08RW 22691-10-10RW 22691-12-10RW 22691-12-12RW 22691-16-16RW 22691-20-20RW 22691-24-24RW 22691-32-32RW	G1/8″X28 G1/4″X19 G1/4″X19 G1/4″X19 G3/8″X19 G3/8″X19 G3/8″X19 G1/2″X14 G5/8″X14 G5/8″X14 G3/4″X14 G3/4″X14 G1″X11 G1.1/4″X11 G1.1/2″X11 G2″X11	6 6 8 10 6 8 10 13 13 16 16 19 25 32 38 51	4 4 5 6 4 5 6 8 8 10 10 12 16 20 24 32	32 32 32.5 36.5 32 32.5 36.5 44.5 44.5 55 55 62 74 91.5 108 133.8	27 28 31.5 34 31 34 34 41 45 51 56 58 70 85 100 140	14 19 19 19 22 22 22 27 30 30 32 32 41 50 55 70
