20441-TRW

45° bend metric external thread 24° tapered with O-ring light series

Get prices +86 18331807383

Product Description

45° bend metric external thread 24° tapered with O-ring light series

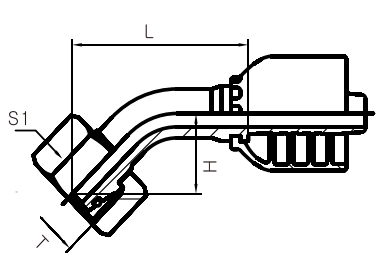

Code PART NO.	Thread T	Hose Bore		Tube Diameter	Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	TUBE O.E.	L	H	S1
20441-14-04TRW 20441-16-04TRW 20441-16-05TRW 20441-18-05TRW 20441-18-06TRW 20441-22-08TRW 20441-26-08TRW 20441-26-10TRW 20441-30-10TRW 20441-30-12TRW 20441-36-12TRW 20441-36-16TRW 20411-45-16TRW 20411-45-20TRW 20441-52-20TRW 20441-52-24TRW	M14X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M22X1.5 M26X1.5 M26X1.5 M30X2 M30X2 M36X2 M36X2 M45X2 M45X2 M52X2 M52X2	6 6 8 8 10 13 13 16 16 19 19 25 25 32 32 38	4 4 5 5 6 8 8 10 10 12 12 16 16 20 20 24	8 10 10 12 12 15 18 18 22 22 28 28 35 35 42 42	39.8 40.8 40.7 42.2 44.5 50.8 54.8 62.7 64.7 68.2 74.7 81.4 87.4 98.8 105.3 115.6	16 17 17 18.5 18.5 19.5 23.5 23.5 25.5 25.5 32 32 38 38 44.5 44.5	17 19 19 22 22 27 32 32 36 36 41 41 50 50 60 60
