Product Description

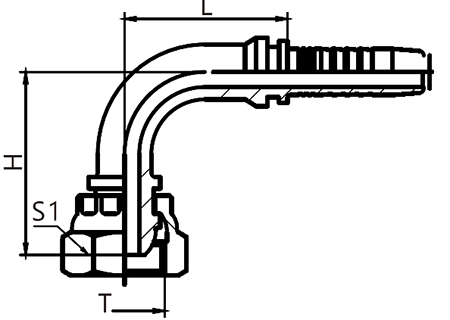

90° Bend Metric Internal Thread Spherical

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	L	H	S1
20191-12-04 20191-14-04T 20191-14-05 20191-16-04T 20191-16-05T 20191-16-06 20191-18-06T 20191-18-08 20191-22-08T 20191-24-10 20191-27-10T 20191-30-12T 20191-39-16T 20191-45-20T 20191-52-24T	M12X1.5 M14X1.5 M14X1.5 M16X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M22X1.5 M24X1.5 M27X1.5 M30X1.5 M39X2 M45X2 M52X2	6 6 8 6 8 10 10 13 13 16 16 19 25 32 38	4 4 5 4 5 6 6 8 8 10 10 12 16 20 24	30 32 33 32 33 36.5 36.5 43.5 43.5 55 55 64 74 91.5 109	32 35.5 40.5 34.5 41 43 44.5 50 52 56.5 54 67 72 85 100	17 17 19 19 19 22 22 24 27 30 32 36 46 55 60

Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 20192-XX-XX.
