26741

45° American standard JC internal thread 74° internal cone surface

Get prices +86 18331807383

Product Description

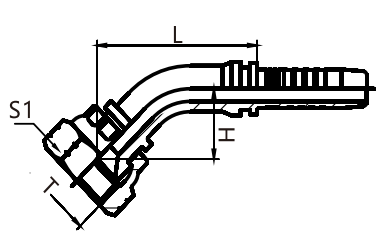

45° American standard JC internal thread 74° internal cone surface

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	L	H	S1
26741-04-04 26741-05-04 26741-05-05 26741-06-04T 26741-06-05 26741-06-06 26741-06-08 26741-08-06T 26741-08-08 26741-08-10 26741-10-08T 26741-10-10 26741-10-12 26741-12-08T 26741-12-10 26741-12-12 26741-14-12T 26741-16-12T 26741-16-16 26741-20-16T 26741-20-20 26741-24-20T 26741-24-24 26741-32-24T 26741-32-32T	7/16″X20 1/2″X20 1/2″X20 9/16″X18 9/16″X18 9/16″X18 9/16″X18 3/4″X16 3/4 “X16 3/4″ X16 7/8 ” X14 7/8″ X14 7/8″X14 1.1/16″X12 1.1/16″X12 1.1/16″X12 1.3/16″X12 1.5/16″X12 1.5/16″X12 1.5/8°X12 1.5/8″X12 1.7/8″X12 1.7/8″X12 2.1/2″X12 2.1/2″X12	6 6 8 6 8 10 13 10 13 16 13 16 19 13 16 19 19 19 25 25 32 32 38 38 51	4 4 5 4 5 6 8 6 8 10 8 10 12 8 10 12 12 12 16 16 20 20 24 24 32	33.8 33.8 33.7 34.8 34.7 37 46.3 41 46.3 55.2 47.3 55.2 63.7 52.3 60.2 63.7 73.5 66.7 73.4 81.4 92.8 102.8 113.1 122.6 136.5	10 10 10 11 11 11 15 15 15 16 16 16 21 21 21 21 31 24 24 32 32 42 42 51.5 51.5	14 17 17 19 19 19 19 22 22 22 27 27 27 32 32 32 36 41 41 50 50 60 60 75 75
