20441-T

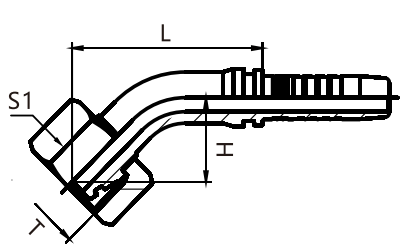

45° bend metric internal thread 24° tapered with O-ring light series
45° bend metric internal thread 24° tapered with O-ring light series
| Code PART NO. |
Thread T | Hose Bore | Tube Outer Diameter | Dimensions | |||
| THREAD T | Nominal Inner Diameter DN | Dash Number | TUBE O.D | L | H | S1 | |
| 20441-12-04W 20441-14-04T 20441-14-05W 20441-14-06W 20441-16-04T 20441-16-05T 20441-16-06W 20441-18-05T 20441-18-06T 20441-18-08W 20441-22-08T 20441-22-10W 20441-26-10T 20441-26-12W 20441-30-10T 20441-30-12T 20441-30-16W 20441-36-12T 20441-36-14T 20441-36-16T 20441-36-20W 20441-45-16T 20441-45-20T 20441-45-24W 20441-52-20T 20441-52-24T 20441-52-32W |
M12X1.5 M14X1.5 M14X1.5 M14X1.5 M16X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M18X1.5 M22X1.5 M22X1.5 M26X1.5 M26X1.5 M30X2 M30X2 M30X2 M36X2 M36X2 M36X2 M36X2 M45X2 M45X2 M45X2 M52X2 M52X2 M52X2 |
6 6 8 10 6 8 10 8 10 13 13 16 16 19 16 19 25 19 22 25 32 25 32 38 32 38 51 |
4 4 5 6 4 5 6 5 6 8 8 10 10 12 10 12 16 12 14 16 20 16 20 24 20 24 32 |
6 8 8 8 10 10 10 12 12 12 15 15 18 18 22 22 22 28 28 28 28 35 35 35 42 42 42 |
47 39 42.5 45 39 45 54.6 46 48 54 57 73 68.5 81 68 74 89.5 76.5 79.5 88 102 88 99.8 113.5 100 115 132.5 |
25 17 19 19 19 21.5 28.6 22 22.2 21.5 25 33.7 29 38.5 28.5 31.5 36.5 33.7 34 35 41.5 35 39.1 44.5 39.1 45.3 51.5 |
14 17 17 17 19 19 19 22 22 22 27 27 32 32 36 36 36 41 41 41 41 50 50 50 60 60 60 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 20442-XX-XX.
