Product Description

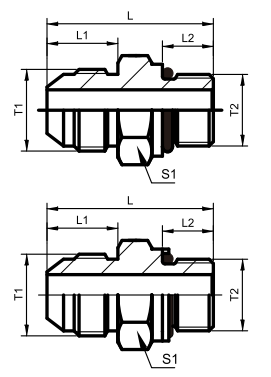

JIC Male 74° Cone / Metric Male End L-Series ISO 6149-3

PART NO.	THREAD		DIMENSIONS				WEIGHT	WORKING PRESSURE
	T1	T2	L1	L2	L	1	g
1JH-04-10 1JH-05-12 1JH-06-14 1JH-06-16 1JH-08-16 1JH-08-18 1JH-10-18 1JH-10-22 1JH-12-22 1JH-12-27 1JH-16-27 1JH-16-33 1JH-20-42 1JH-24-48	7/16″X20 1/2″X20 9/16″X18 9/16″X18 3/4″X16 3/4″X16 7/8″X14 7/8″X14 1.1/16″X12 1.1/16’X12 1.5/16″X12 1.5/16″X12 1.5/8″X12 1.7/8″X12	M10X1 M12X1.5 M14X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M22 1.5 M22X1.5 M27X2 M27X2 M33X2 M42X2 M48X2	14 14 14.1 14.1 16.7 16.7 19.3 19.3 21.9 21.9 23.1 23.1 24.3 27.5	8.5 11 11 11.5 11.5 12.5 12.5 13 13 16 16 16 16 17.5	30 31 31 35.1 36 39.1 41.7 43.5 45.5 49.5 50.5 51.5 55.5 61	14 17 19 22 22 24 24 27 27 32 36 41 50 55	21 30 36 52 67 74 88 108 160 180 247 285 488 605	34.5 34.5 34.5 31.5 31.5 31.5 31.5 31.5 31.5 20 20 20 17 14
