Product Description

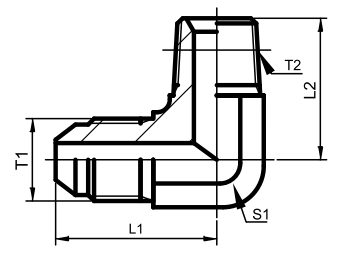

90° Elbow JIC Male 74° Cone / BSPT Male

PART NO.	THREAD		DIMENSIONS			WEIGHT	WORKING PRESSURE
	T1	T2	L1	L2	1	g
1JT9-04-02SP 1JT9-04SP 1JT9-05-02SP 1JT9-05-04SP 1JT9-06-04SP 1JT9-06SP 1JT9-06-08SP 1JT9-08-04SP 1JT9-08-06SP 1JT9-08SP 1JT9-10-06SP 1JT9-10-08SP 1JT9-10-12SP 1JT9-12-08SP 1JT9-12SP 1JT9-16-12SP 1JT9-16SP 1JT9-20-16SP 1JT9-20SP 1JT9-24SP	7/16″X20 7/16″X20 1/2″X20 1/2″X20 9/16″X18 9/16″X18 9/16″X18 3/4″X16 3/4″X16 3/4″X16 7/8″X14 7/8″X14 7/8″X14 1.1/16″X12 1.1/16″X12 1.5/16″X12 1.5/16″X12 1.5/8″X12 1.5/8″X12 1.7/8″X12	R1/8″X28 R1/4″X19 R1/8″X28 R1/4″X19 R1/4″X19 R3/8″X19 R1/2″X14 R1/4″X19 R3/8″X19 R1/2″X14 R3/8″X19 R1/2″X14 R3/4″X14 R1/2″X14 R3/4″X14 R3/4″X14 R1″X11 R1″X11 R1.1/4″X11 R1.1/2″X11	22.6 26.6 24.1 26.6 26.9 29 31 31.8 31.8 33.8 36.5 36.8 39.2 42.2 42.2 46 46 52.3 52.3 59.2	19.8 27.7 19.8 27.7 27.7 31 37.3 31 31 37.3 32.5 37.3 40.4 40.4 40.4 45.2 50 59.7 60.5 67.1	11 14 14 14 14 16 22 19 19 22 22 22 27 27 27 33 33 41 41 48	22 40 22 41 42 65 100 71 83 127 112 132 182 198 224 300 377 531 660 878	34.5 34.5 34.5 34.5 34.5 34.5 34.5 31 31 31 24 24 24 24 24 21 20.5 17 17 10.5
