Product Description

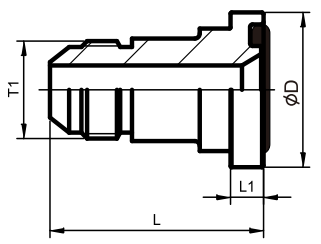

JIC Male 74° Cone / S-Series ISO 6149-2

PART NO.	THREAD	FLANGE SIZE	DIMENSIONS			WEIGHT	WORKING PRESSURE
	T1		L1	D	L	G
1JFS-08 1JFS-10-08 1JFS-10-12 1JFS-12 1JFS-12-16 1JFS-16-12 1JFS-16 1JFS-16-20 1JFS-20-16 1JFS-20 1JFS-20-24 1JFS-24-20 1JFS-24	3/4″X16 7/8″X14 7/8″X14 1.1/16″X12 1.1/16″X12 1.5/16″X12 1.5/16″X12 1.5/16″X12 1.5/8″X12 1.5/8″X12 1.5/8″X12 1.7/8″X12 1.7/8″X12	1/2″ 1/2″ 3/4″ 3/4″ 1″ 3/4″ 1″ 1.1/4″ 1″ 1.1/4″ 1.1/2″ 1.1/4” 1.1/2″	7.75 7.75 8.76 8.76 9.53 8.76 9.53 10.29 9.53 10.29 12.57 10.29 12.57	31.7 31.7 41.3 41.3 47.6 41.3 47.6 54 47.6 54 63.5 54 63.5	47.5 50 55 56.7 61.5 57.8 62.8 67.7 64 68.9 73.5 72 76.7	70 90 99 146 158 205 224 241 234 349 356 432 438	31 24 24 24 24 21 20 17 17 17 14 14 14
