Product Description

ORFS Male O-Ring / Metric Male S-Series ISO 6149-2

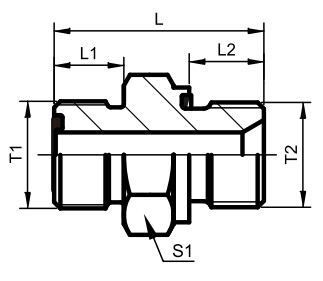

PART NO.	THREAD		DIMENSIONS				WEIGHT	WORKING PRESSURE
	T1	T2	L1	L2	L	1	g
1FH-04-12 1FH-04-14 1FH-06-12 1FH-06-14 1FH-06-16 1FH-06-18 1FH-08-14 1FH-08-16 1FH-08-18 1FH-08-22 1FH-08-27 1FH-10-18 1FH-10-22 1FH-10-27 1FH-12-22 1FH-12-27 1FH-12-33 1FH-16-33 1FH-20-42 1FH-24-48	9/16″X18 9/16″X18 11/16″X16 11/16″X16 11/16″X16 11/16″X16 13/16″X16 13/16″X16 13/16″X16 13/16″ X16 13/16″X16 1″X14 1″X14 1″X14 1.3/16″X12 1.3/16″X12 1.3/16″X12 1.7/16″X12 1.11/16″X12\| 2″X12	M12X1.5 M14X1.5 M12X1.5 M14X1.5 M16X1.5 M18X1.5 M14X1.5 M16X1.5 M18X1.5 M22X1.5 M27X2 M18X1.5 M22X1.5 M27X2 M22X1.5 M27X2 M33X2 M33X2 M42X2 M48X2	10 10 11 11 11 11 13 13 13 13 13 15.5 15.5 15.5 17 17 17 17.5 17.5 17.5	11 11 11 11 11.5 12.5 11 11.5 12.5 13 16 12.5 13 16.5 13 16 16 16 16 17.5	28.5 29.5 32 32 33.5 36 35 36.5 37 39.5 44 41 42 47 45 48.5 51.5 52 54.5 57	17 19 19 19 22 24 22 22 24 27 32 27 27 32 32 32 41 41 50 55	30 40 45 48 60 78 65 76 80 106 160 115 123 178 175 198 309 300 451 557	63 63 63 63 63 63 63 63 63 63 40 40 40 40 40 40 40 40 25 25
