Product Description

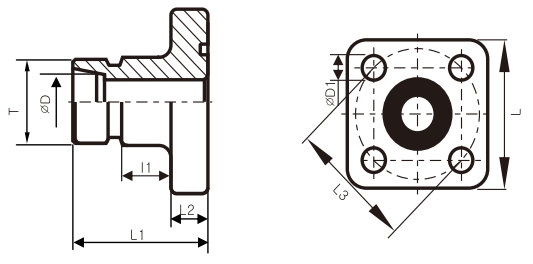

Pump Flange Connection

PART NO.	THREAD	TUBE O.D	DIMENSIONS					ACCESSORIES		WORKING PRESSURE
	T1	TUDE O.D.	L	L1	L2	L3	D1	BOLT	O-RING	Mpa
ICFG-16-30 ICFG-18-30 ICFG-16-35 ICFG-18-35 ICFG-22-35 ICFG-26-35 ICFG-22-40 ICFG-26-40 ICFG-30-40 ICFG-36-40 IDFG-24-35 IDFG-30-55	M16X1.5 M18X1.5 M16X1.5 M18X1.5 M22X1.5 M26X1.5 M22X1.5 M26X1.5 M30X2 M36X2 M24X1.5 M30X2	10 12 10 12 15 18 15 18 22 28 16 20	36 36 39 39 39 39 42 42 42 42 39 55	30 30 30 30 30 30 35 35 35 42 30 42	8 8 8 8 8 8 8 8 8 8 8 8	30 30 35 35 35 35 40 40 40 40 35 55	6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 6.5 8.5	4XM6X22 4XM6X22 4XM6X22 4XM6X22 4XM6X22 4XM6X22 4XM6X22 4XM6X22 4XM6X22 4XM6X22 4XM6X22 4XM8X22	20X2.5 20X2.5 20X2.5 20X2.5 20X2.5 20X2.5 20X2.5 20X2.5 20X2.5 20X2.5 20X2.5 32X2.5	31.5 31.5 31.5 31.5 25 25 10 10 10 10 31.5 25
