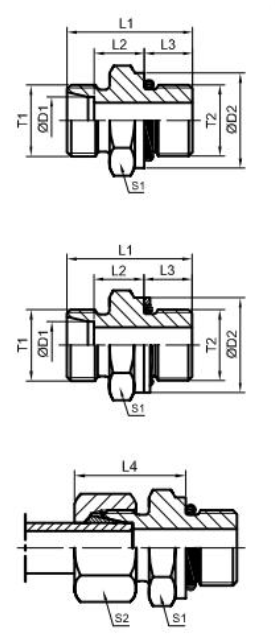

Metric Thread Stud Ends ISO 6149
| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | |||||||
| T1 | T2 | D1 | D2 | L1 | L2 | L3 | L4 | 1 | S2 | g/pc | (bar) | ||
| 1CH-12-10 1CH-14-12 1CH-16-14 1CH-16 1CH-18-16 1CH-18 1CH-22-18 1CH-22 1CH-26-22 1CH-26 1CH-30-26 1CH-30-27 1CH-36-33 1CH45-42 1CH-52-48 1DH-14-12 1DH-16-14 1DH-16 1DH-18-16 1DH-18 1DH-20-18 1DH-24-22 1DH-31-27 1DH-36-33 1DH-42 1DH-52-48 |
M12 1.5 M14 1.5 M16 1.5 M16 1.5 M18 1.5 M18x1.5 M22 1.5 M22 1.5 M26 1.5 M26 1.5 M30 2 M30 2 M36 2 M45 2 M52 2 M14 1.5 M16 1.5 M16 1.5 M18 1.5 M18 1.5 M20 1.5 M24 1.5 M30 2 M36 2 M42 2 M52 2 |
M10x1 M12 1.5 M14 1.5 M16 1.5 M16 1.5 M18 1.5 M18 1.5 M22 1.5 M22 1.5 M26 1.5 M26 1.5 M27 2 M43 2 M42 2 M48 2 M16x1.5 M14 1.5 M16x1.5 M16x1.5 M18x1.5 M18 1.5 M22 1.5 M27 2 M33 2 M42 2 M48 2 |
6 8 10 10 12 12 15 15 18 18 22 22 28 35 42 6 8 8 10 10 12 16 20 25 30 38 |
14 17 19 22 22 24 24 27 27 31.9 31.9 32 41 50 55 17 19 22 22 24 24 27 32 41 50 55 |
24 28 29 31 31 33 33 34.5 35 38 40 40 41 44 47.5 31 33 35 35 38.5 38.5 42 49.5 53.5 56 63.5 |
8.5 10 11 12.5 12.5 13.5 13.5 14.5 14.5 14.5 16.5 16.5 17.5 17.5 19 13 15 15 15 17 17 18.5 20.5 23 23 26 |
8.5 11 11 11.5 11.5 12.5 12.5 13 13 16 16 16 16 16 17.5 11 11 12.5 12.5 14 14 15 18.5 18.5 19 21.5 |
23 25 26 27.5 27 28 29 30 31 31 33 33 34 39 42 28 30 31 31 33 33 37 42 47 50 57 |
14 17 19 22 22 24 24 27 27 32 32 32 41 50 55 17 19 22 22 24 24 27 32 41 50 55 |
14 17 19 22 22 22 27 27 32 32 36 36 41 50 60 17 19 19 22 22 24 30 36 46 50 60 |
15 23 28 40 42 51 56 74 80 108 107 104 171 278 340 29 37 50 55 71 73 102 169 274 412 580 |
500 500 500 420 400 400 400 400 400 400 250 250 250 250 250 800 800 800 800 630 630 630 420 420 420 420 |
L L L L L L L L L L L L L L L S S S S S S S S S S S |
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix“RN”after our ,for example 1CH-30-27/RN: with retainer ring please insert suffix“DQ”after our ,for example 1CH-30-27/DQ.
