Metric Male Bite Type /SAE Flange 3000 PSI

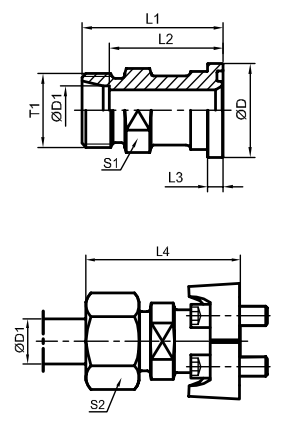

| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | ||||||
| T1 | D1 | D | L1 | L2 | L3 | L4 | 1 | S2 | g/pc | (bar) | ||
| 1CFL-22-08 1CFL-26-08 1CFL-26-12 1CFL-30-12 1CFL-36-12 1CFL-36-16 1CE45-20 1CFL-45-24 1CFL-52-24 1DFL-24-08 1DFL-24-12 1DFL-30-12 1DFL-36-12 1DFL-30-16 1DFL-36-16 1DFL-42-16 1DFL-36-20 1DFL-42-20 1DFL-52-20 1DFL-52-24 |
M22x1.5 M26x1.5 M26x1.5 M30x2 M36x2 M36x2 M45x2 M45x2 M52x2 M24x1.5 M24x1.5 M30x2 M36x2 M30x2 M36x2 M42x2 M36x2 M42x2 M52x2 M52x2 |
15 18 18 22 28 28 35 35 42 16 16 20 25 20 25 30 25 30 38 38 |
30.2 30.2 38.1 38.1 38.1 44.5 50.8 60.3 60.3 30.2 38.1 38.1 38.1 44.5 44.5 44.5 50.8 50.8 50.8 60.3 |
48 50 53 53 55 54 58 65 64 50 55 57 57 60 58 63 60 62 66 70 |
41 42.5 45.5 45.5 45.5 46.5 47.5 54.5 53 41.5 46.5 46.5 45 48.5 46.5 49.5 48 48.5 50 54 |
6.7 6.7 6.7 6.7 6.7 8 8 8 8 6.7 6.7 6.7 6.7 8 8 8 8 8 8 8 |
56 61 62 62 64 63 69 76 76 60 64.5 68 69 71 60 76 72 75 81 85 |
24 24 30 30 32 36 41 46 46 24 27 30 30 32 36 36 41 41 46 46 |
27 32 32 36 41 41 50 50 60 30 30 36 46 36 46 50 46 50 60 60 |
360 420 590 590 600 730 1020 1200 1360 400 520 650 780 700 840 940 1170 1200 1410 1630 |
315 315 315 160 160 160 160 160 160 350 350 350 350 350 350 200 200 200 200 200 |
L L L L L L L L L S S S S S S S S S S S |
Note :ln case if you are interestad to order adapter in complete set with split flange clamps and screw it is nexessary to insert suffix”ZH”after our for example 1CFL-36-16ZH
