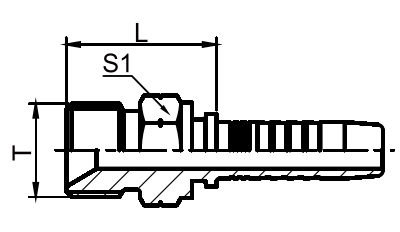

British external thread 60° internal cone surface
| Code PART NO. |
Thread T | Hose bore | Dimensions | ||
| THREAD T | Nominal inner diameter DN | Dash number | L | 1 | |
| 12611-04-04 12611-06-05 12611-06-06 12611-06-08 12611-08-06 12611-08-08 12611-10-08 12611-10-10 12611-12-08 12611-12-10 12611-12-12 12611-16-12 12611-16-16 12611-20-16 12611-20-20 12611-24-20 12611-24-24 12611-32-32 |
G1/4″X19 G3/8″X19 G3/8″X19 G3/8″X19 G1/2″X14 G1/2″X14 G5/8″X14 G5/8″X14 G3/4″X14 G3/4″X14 G3/4″X14 G1″X11 G1″X11 G1.1/4″X11 G1.1/4″X11 G1.1/2″X11 G1.1/2″X11 G2″X11 |
6 8 10 13 10 13 13 16 13 16 19 19 25 25 32 32 38 51 |
4 5 6 8 6 8 8 10 8 10 12 12 16 16 20 20 24 32 |
24.5 27.5 27.5 26.5 30.5 31 32.5 33.5 35.5 36.5 36.5 39.5 41.5 43.5 44.5 46 46 53.5 |
14 17 17 19 22 22 24 24 27 27 27 36 36 46 46 50 50 65 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 12612-XX-XX.
