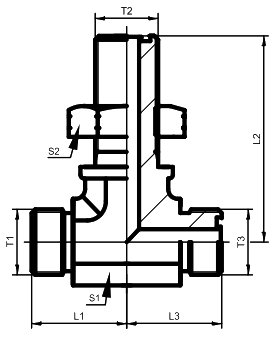

ORFS Male O-Ring Bulkhead Branch Tee
| PART NO. | THREAD | DIMENSIONS | WEIGHT | WORKING PRESSURE | ||||||
| T1 | T2 | T3 | L1 | L2 | L3 | S1 | S2 | g | ||
| AF6FF-04LN AF6FF-06LN AF6FF-08LN AF6FF-10LN AF6FF-12LN AF6FF-16LN AF6FF-20LN AF6FF-24LN |
9/16″X18 11/16″X16 13/16″X16 1*X14 1.3/16″ X12 1.7/16″X12 1.11/16″X12 2*X12 |
9/16″X18 11/16″X16 13/16″X16 1″X14 1.3/16″X12 1.7/16″X12 1.11/16″X12 2″X12 |
9/16“X18 11/16″X16 13/16″X16 1″X14 1.3/16″X12 1.7/16″X12 1.11/16*X12 2″X12 |
22.5 26 29 34.5 38.5 42.5 45.5 49.5 |
47 52 55.5 63 67 71 75.5 79.5 |
22.5 26 29 34.5 38.5 42.5 45.5 49.5 |
14 19 19 27 30 36 41 48 |
22 27 30 36 41 46 50 60 |
108 176 238 409 583 858 1115 1606 |
63 63 63 40 40 40 25 25 |
