90° Elbow Male Adjustable Stud Ends ISO 6149

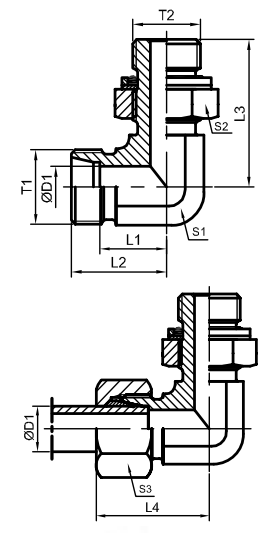

| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | |||||||
| T1 | T2 | D1 | L1 | L2 | L3 | L4 | 1 | S2 | S3 | g/pc | (Bar) | ||
| 1CH9-12-10OG 1CH9-14-12OG 1CH9-16-14OG 1CH9-18-16OG 1CH9-22-18OG 1CH9-26-22OG 1CH9-30-27OG 1CH9-36-33OG 1DH9-14-12OG 1DH9-16-14OG 1DH9-18-16OG 1DH9-20-18OG 1DH9-22-20OG 1DH9-24-22OG 1DH9-30-27OG 1DH9-36-33OG 1DH9-42OG |
M12x1.5 M14x1.5 M16x1.5 M18x1.5 M22x1.5 M26x1.5 M30x2 M36x2 M4x1.5 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M24x1.5 M30x2 M36x2 M42x2 |
M10x1 M12x1.5 M14x1.5 M16x1.5 M18x1.5 M22x1.5 M27x2 M33x2 M12x1.5 M14x1.5 M16x1.5 M18x1.5 M20x1.5 M22x1.5 M27x2 M33x2 M42x2 |
6 8 10 12 15 18 22 28 6 8 10 12 14 16 20 25 30 |
14 16 17 19 21 24 28 31 15 17 18 22 22 25 28 30 36 |
21 23 24 26 28 31.5 35.5 38.5 22 24 25.5 29.5 30 33.5 38.5 42 49.5 |
27 32 34 35 42 45 50 53 32 36 38 43 40 50 54 60 68 |
29 31 32 34 36 40 44 47 30 32 34 38 40 43 49 54 62 |
14 14 19 19 22 27 30 36 14 19 19 22 22 27 30 36 50 |
14 17 19 22 24 27 32 41 17 19 22 24 27 27 32 41 50 |
14 17 19 22 27 32 36 41 17 19 22 24 27 30 36 46 50 |
33 52 66 91 132 197 302 466 54 68 93 126 161 183 309 487 773 |
315 315 315 250 250 250 160 160 315 315 250 250 250 250 250 250 160 |
L L L L L L L L S S S S S S S S S |
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix”RN”after our ,for example 1DH9-24-220G/RN: with retainer ring please insert suffix”DQ”after our ,for example 1DH9-24-220GDQ
