Metric Male Bite Type /SAE Flange 6000 PSI
| PART NO. | THREAD | TUBE O.D | DIMENSIONS | BOLT | WEIGHT | WORKING PRESSURE | ||||||

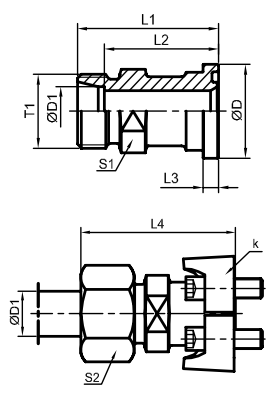

| T1 | D1 | D | L1 | L2 | L3 | L4 | 1 | S2 | g/pc | (bar) | ||
| 1DFS-20-08 1DFS-22-08 1DFS-24-08 1DFS-24-12 1DFS-30-12 1DFS-36-12 1DFS-42-12 1DFS-30-16 1DFS-36-16 1DFS-42-16 1DFS-52-16 1DFS-36-20 1DFS-42-20 1DFS-52–20 1DFS-42-24 1DFS-52-24 |
M20x1.5 M22x1.5 M24x1.5 M24x1.5 M30x2 M36x2 M42x2 M30x2 M36x2 M42x2 M52x2 M36x2 M42x2 M52x2 M42x2 M52x2 |
12 14 16 16 20 25 30 20 25 30 38 25 30 38 30 38 |
31.8 31.8 31.8 41.3 41.3 41.3 41.3 47.6 47.6 47.6 47.6 54 54 54 63.5 63.5 |
42.5 50 53 59 61 63 76 75 72 74 84.5 80 79 83 90 89 |
42.5 42 44.5 50.5 50.5 51 62 64.5 60 60.5 68 68 65.5 67 74 73 |
7.7 7.7 7.7 8.7 8.7 8.7 8.7 9.5 9.5 9.5 9.5 10.2 10.2 10.2 12.5 12.5 |
575 59.5 63 69 72 75 89 88 84 87 99 92 92 98 103 104 |
19 19 24 30 30 30 30 36 36 36 46 41 41 46 46 46 |
24 27 30 30 36 46 50 36 46 50 60 46 50 60 50 60 |
M8X30 M8X30 M8X30 M10X35 M10X35 M10X35 M10X35 M12X45 M12X45 M12X45 M12X45 M14X50 M14X50 M14X50 M16X55 M16X55 |
350 390 470 790 860 970 1150 970 1420 1400 1400 1850 1900 2100 2100 3060 |
420 420 400 400 400 400 420 420 400 400 315 420 400 315 420 315 |
Note :In case if you are interestad to order adapter in complete set with split flange clamps and screw it is nexessary to insert suffix”ZH’after our part NO,for example 1DFS-36-16ZH
