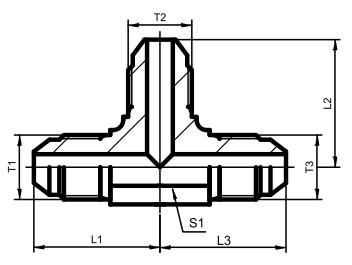

JIC Male 74° Cone Tee
| PART NO. | THREAD | DIMENSIONS | WEIGHT | WORKING PRESSURE | |||||
| T1 | T2 | T3 | L1 | 12 | L3 | S1 | G | ||
| AJ-04 AJ-05 AJ-06 AJ-08 AJ-10 AJ-12 AJ-16 AJ-20 AJ-24 AJ-32 |
7/16″X20 1/2″X20 9/16X18 3/4″X16 7/B”X14 1.1/16″X12 1.5/16″X12 1.5/8″X12 1.7/8″X12 2.1/2″X12 |
7/16X20 1/2″X20 9/16″X18 3/4″X16 7/8″X14 1.1/16″X12 1.5/16″X12 1.5/8″X12 1.7/8″ X12 2.1/2″X12 |
7/16″X20 1/2″X20 9/16X18 3/4″X16 7/8″X14 1.1/16″X12 1.5/16″X12 1.5/8″X12 1.7/8″X12 2.1/2″X12 |
24.5 26 26.9 32 37.8 44.2 49 56.5 63 78 |
24.5 26 26.9 32 37.8 44.2 49 56.5 63 78 |
24.5 26 26.9 32 37.8 44.2 49 56.5 63 78 |
11 14 14 19 22 27 33 41 48 63 |
44 56 70 150 220 370 558 966 1305 2835 |
34.5 34.5 34.5 31 24 24 21 17 14 10.5 |
