Product Description

ORFS Male O-Ring / SAE O-Ring Boss S-Series ISO 11926-2

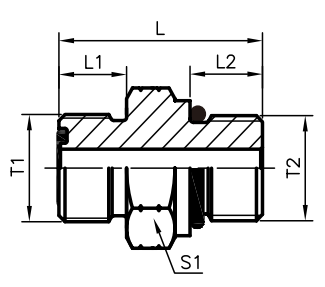

PART NO.	THREAD		DIMENSIONS				WEIGHT	WORKING PRESSURE
	T1	T2	L	L1	L2	1	g
1FO-04 1FO-04-05 1FO-04-06 1FO-04-08 1FO-06-04 1FO-06-05 1FO-06 1FO-06-08 1FO-06-10 1FO-08-06 1FO-08 1FO-08-10 1FO-08-12 1FO-10 1FO-10-08 1FO-10-12 1FO-12-10 1FO-12 1FO-12-16 1FO-16-12 1FO-16 1FO-16-20 1FO-20-16 1FO-20 1FO-24-20 1FO-24	9/16″X18 9/16“X18 9/16″X18 9/16″X18 11/16″ X16 11/16″ X16 11/16″X16 11/16″ X16 11/16″X16 13/16″ X16 13/16″X16 13/16″X16 13/16″ X16 1″X14 1″X14 1″X14 1.3/16″X12 1.3/16″ X12 1.3/16″ X12 1.7/16″X12 1.7/16″X12 1.7/16″ X12 1.11/16″ X12 1.11/16″ X12 2″X12 2“X12	7/16″ X20 1/2″ X20 9/16″X18 3/4″ X16 7/16″ X20 1/2“X20 9/16″X18 3/4″ X16 7/8″ X14 9/16″X18 3/4″ X16 7/8″X14 1.1/16″ X12 7/8″ X14 3/4″ X16 1.1/16″ X12 7/8″ X14 1.1/16″X12 1.5/16″ X12 1.1/16″ X12 1.5/16″ X12 1.5/8″ X12 1.5/16″ X12 1.5/8″ X12 1.5/8″ X12 1.7/8″ X12	28.7 28.7 30.5 33.6 31 30.9 31.9 35 38.5 34.5 36.6 40.5 44.5 43.1 41 47 46 48.6 49.8 50 50.3 52 52 52.3 54 54.1	10 10 10 10 11 11 11 11 11 13 13 13 13 15.5\| 15.5\| 15.5 17 17 17 17.5 17.5 17.5 17.5\| 17.5 17.5 17.5	11 11 12 14 11 11 12 14 16 12 14 16 18.5 16 14 18.5 16 18.5 18.5 18.5 18.5 18.5 18.5 18.5 18.5 18.5	17 17 19 22 19 19 19 22 27 22 22 27 32 27 27 32 32 32 38 38 41 50 46 46 55 55	30 32 41 65 40 42 45 70 105 55 68 106 165 117 102 175 153 182 264 216 279 481 305 368 451 511	63 63 63 63 63 63 63 63 63 63 63 63 40 40 40 40 40 40 40 40 40 25 25 25 25 25
