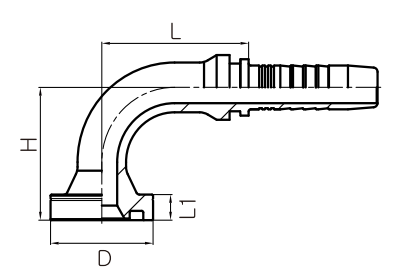

90° SAE Flange 6000 PS162 Type
| Code PART NO. |
Flange Model | Hose Bore | Dimensions | ||||
| Flange Size | Nominal Inner Diameter DN | Dash Number | L | H | D | L1 | |
| 87691-08-08 87691-12-10 87691-12-12 87691-16-12 87691-16-16 87691-16-20 87691-20-16 87691-20-20 87691-24-20 87691-24-24 87691-32-24 87691-32-32 |
1/2″ 3/4″ 3/4″ 1″ 1″ 1″ 1.1/4″ 1.1/4″ 1.1/2″ 1.1/2″ 2″ 2″ |
13 16 19 19 25 32 25 32 32 38 38 51 |
8 10 12 12 16 20 16 20 20 24 24 32 |
44.5 55 62 62 74 91.5 74 91.5 91.5 108 108 133.8 |
40 58 58 70 70 82 90 90 104 104 138 138 |
31.7 41.3 41.3 47.6 47.6 47.6 54 54 63.5 63.5 79.4 79.4 |
7.75 8.76 8.76 9.53 9.53 9.53 10.29 10.29 12.57 12.57 12.57 12.57 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 87692-XX-XX.
