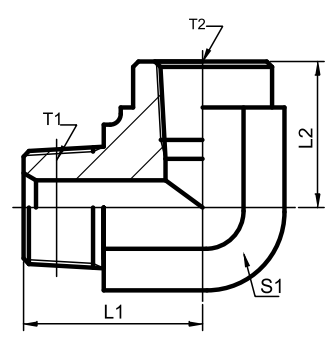

90° Elbow NPT Male / NPT Female
| PART NO. | THREAD | DIMENSIONS | WEIGHT | WORKING PRESSURE | |||
| T1 | T2 | L1 | L2 | S1 | g | ||
| 5N9-02 5N9-04 5N9-04-06 5N9-06 5N9-08 5N9-12-08 5N9-12 5N9-16 5N9-20 5N9-24 5N9-32 |
NPT1/8″X27 NPT1/4’X18 NPT1/4″X18 NPT3/8″X18 NPT1/2″X14 NPT3/4″X14 NPT3/4″X14 NPT1″X11.5 NPT1.1/4″X11.5 NPT1.1/2″X11.5 NPT2″X11.5 |
NPT1/8″X27 NPT1/4″X18 NPT3/8″X18 NPT3/8″X18 NPT1/2″X14 NPT1/2″X14 NPT3/4″X14 NPT1″X11.5 NPT1.1/4″X11.5 NPT1.1/2″X11.5 NPT2″X11.5 |
19.8 28 31 33.5 41.2 45 45.2 54.5 63 71.5 73.5 |
17.8 22.4 25 25 31.2 31.2 34.5 41.1 43.2 52.8 62 |
14 19 22 22 27 27 33 41 48 63 70 |
25 40 60 74 138 176 174 310 458 935 840 |
34.5 27.5 21 21 21 17 17 14 8 7 5 |
