Product Description

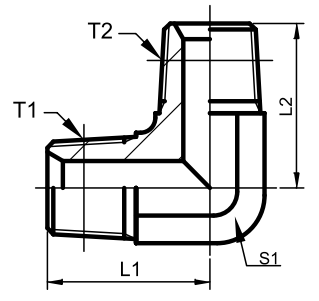

90° Elbow NPT Male

PART NO.	THREAD		DIMENSIONS			WEIGHT	WORKING PRESSURE
	T1	T2	L1	L2	1	g
1N9-02 1N9-02-04 1N9-04 1N9-04-06 1N9-04-08 1N9-06 1N9-06-08 1N9-08 1N9-08-12 1N9-12 1N9-12-16 1N9-16 1N9-20 1N9-24 1N9-32	NPT1/8″ X27 NPT1/8″ X27 NPT1/4″X18 NPT1/4″ X18 NPT1/4″X18 NPT3/8″ X18 NPT3/8″ X18 NPT1/2″ X14 NPT1/2″X14 NPT3/4″X14 NPT3/4″ X14 NPT1″ X11.5 NPT1.1/4″X11.5 NPT1.1/2″X11.5 NPT2″ X11.5	NPT1/8″X27 NPT1/4“X18 NPT1/4″X18 NPT3/8“X18 NPT1/2″X14 NPT3/8″X18 NPT1/2″X14 NPT1/2″X14 NPT3/4″X14 NPT3/4″X14 NPT1″X11.5 NPT1“X11.5 NPT1.1/4″X11.5 NPT1.1/2″X11.5 NPT2″X11.5	21 23.5 25.5 28 30.5 31 33.8 37.3 40 44 46.5 50 54 63 68	21 25.5 25.5 31 36.7 31 36.7 36.7 44 44 50 50 54 63 68	11 14 14 19 22 19 22 22 27 27 33 33 41 48 63	21 31 39 58 86 75 106 130 184 228 311 382 650 948 1335\|	34.5 27.5 27.5 21 21 21 21 21 17 17 14 14 8 7 5
