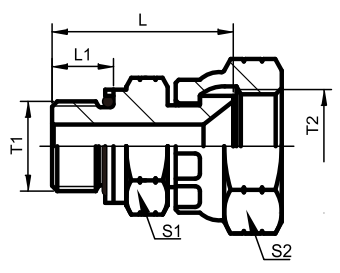

Metric Male End L-Series ISO 649-31 /JIC Female 74°Seat
| PART NO. | THREAD | DIMENSIONS | WEIGHT | WORKING PRESSURE | ||||
| T1 | T2 | L1 | L | S1 | 2 | g | ||
| 2HJ-10-04 2HJ-12-05 2HJ-14-06 2HJ-16-08 2HJ-22-08 2HJ-27-12 2HJ-33-16 |
M10X1 M12X1.5 M14X1.5 M16X1.5 M22 1.5 M27X2 M33X2 |
7/16″X20 1/2″X20 9/16″X18 3/4″X16 7/8″X14 1.1/16″X12 1.5/16″X12 |
8.5 11 11 11.5 13 16 16 |
16.4 20.8 21.4 22.8 22.8 23.4 57.5 |
14 17 19 22 27 32 41 |
14 17 19 24 27 32 41 |
62 80 125 190 340 578 633 |
34.5 34.5 34.5 31 24 20 20 |
