28641

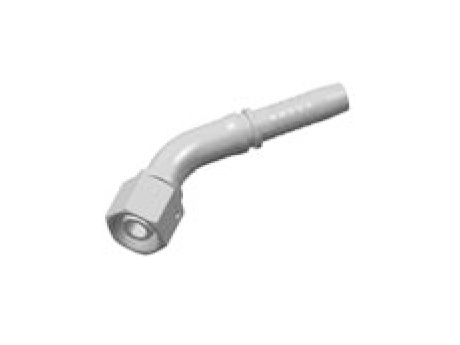

45° Japanese metric internal thread 60° internal cone surface

Get prices +86 18331807383

Product Description

45° Japanese metric internal thread 60° internal cone surface

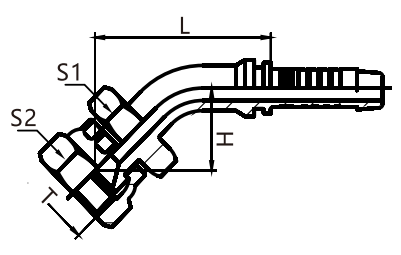

Code PART NO.	Thread T	Hose Bore		Dimensions
	Thread T	Nominal Inner Diameter DN	Dash	L	H	S1	2
28641-12-04 28641-14-04 28641-14-06 28641-16-04 28641-16-05 28641-16-06 28641-18-06 28641-18-08 28641-22-08 28641-24-08 28641-24-10 28641-30-12 28641-33-12 28641-33-16 28641-36-20	M12X1.5 M14X1.5 M14X1.5 M16X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M22X1.5 M24X1.5 M24X1.5 M30X1.5 M33X1.5 M33X1.5 M36X1.5	6 6 10 6 8 10 10 13 13 13 16 19 19 25 32	4 4 6 4 5 6 6 8 8 8 10 12 12 16 20	42.5 42.5 49 45 49 51.5 52 61 61 62.5 71 77 78.5 90 104	19 19 23 21.5 25.5 25.5 26 28.5 28.5 30 31 34 36 37 43.5	17 19 19 22 22 22 24 24 27 32 32 36 41 41 46	17 19 19 22 22 22 24 24 27 32 32 36 41 41 46
