26711D-SM

American JC internal thread 74° internal cone double hexagon

Get prices +86 18331807383

Product Description

American JC internal thread 74° internal cone double hexagon

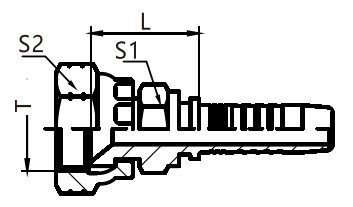

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	L	S1	S2
26711D-04-04SM 26711D-05-04SM 26711D-06-04SM 26711D-06-06SM 26711D-08-06SM 26711D-08-08SM 26711D-08-10SM 26711D-10-08SM 26711D-10-10SM 26711D-12-12SM 26711D-16-12SM 26711D-16-16SM 26711D-20-20SM	7/16″ X20 1/2″X20 9/16″X18 9/16″ X18 3/4 ” X16 3/4 “X16 3/4″X16 7/8 “X14 7/8 ” X14 1.1/16″X12 1.5/16″X12 1.5/16″ X12 1.5/8″X12	6 6 6 10 10 13 16 13 16 19 19 25 32	4 4 4 6 6 8 10 8 10 12 12 16 20	20 20.5 21 21 25 24.5 25.5 24 27 31.5 31.5 32.5 37	12 12 14 17 19 22 22 22 22 27 32 32 41	14 17 19 19 22 22 22 27 27 32 41 41 50
