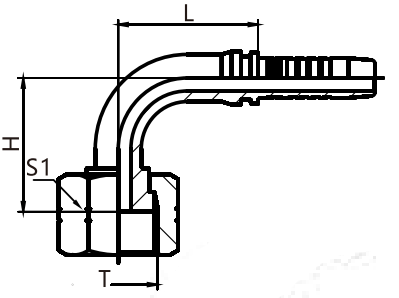

90° American ORFS internal threaded flat
| Code PART NO. |
Thread T | Hose Bore | Dimensions | |||
| THREAD T | Nominal Inner Diameter DN | Dash Number | L | H | S1 | |
| 24291-04-04 24291-06-04T 24291-06-05T 24291-06-06 24291-08-06T 24291-08-08 24291-08-10 24291-10-08T 24291-10-10 24291-12-08T 24291-12-10T 24291-12-12 24291-16-12T 24291-16-16T 24291-20-16T 24291-20-20 24291-24-20T 24291-24-24T |
9/16″X18 11/16″X16 11/16″X16 11/16″X16 13/16″ X16 13/16″X16 13/16″ X16 1″X14 1″X14 1.3/16″X12 1.3/16″X12 1.3/16″X12 1.7/16″X12 1.7/16″X12 1.11/16″X12 1.11/16 ” X12 2″X12 2″X12 |
6 6 8 10 10 13 16 13 16 13 16 19 19 25 25 32 32 38 |
4 4 5 6 6 8 10 8 10 8 10 12 12 16 16 20 20 24 |
32 32 32.5 36.5 36.5 44.5 55 44.5 55 44.5 55 62 62 74 74 91.5 91.5 108 |
32 38 38 38 41 41 47 47 47 58 58 58 71 71 78 78 86 86 |
17 22 22 22 24 24 24 30 30 36 36 36 41 41 50 50 60 60 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, the code changes to 24292-XX-XX.
