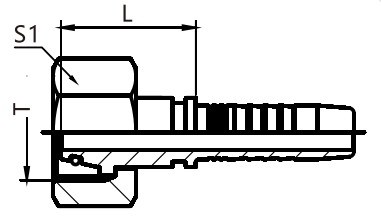

Metric internal thread 24° tapered with O-ring heavy series
| Code PART NO. |
Thread T | Hose bore | Tube outer diameter | Dimensions | ||
| THREAD T | Nominal inner diameter DN | Dash number | TUBE O.D | L | S1 | |
| 20511-14-04T 20511-16-04T 20511-16-05T 20511-18-04T 20511-18-05T 20511-18-06T 20511-20-06T 20511-20-08W 20511-22-06T 20511-24-06T 20511-24-08T 20511-30-10T 20511-30-12T 20511-36-12T 20511-36-16T 20511-42-12T 20511-42-16T 20511-42-20W 20511-52-20T 20511-52-24T |
M14X1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M18X1.5 M20X1.5 M20X1.5 M22X1.5 M24X1.5 M24X1.5 M30X2 M30X2 M36X2 M36X2 M42X2 M42X2 M42X2 M52X2 M52X2 |
6 6 8 6 8 10 10 13 10 10 13 16 19 19 25 19 25 32 32 38 |
4 4 5 4 5 6 6 8 6 6 8 10 12 12 16 12 16 20 20 24 |
6 8 8 10 10 10 12 12 14 16 16 20 20 25 25 30 30 30 38 38 |
23.5 24 24 25 25 25 28.5 29 25.5 29.5 30 34 35 32 35.5 35 36 34.5 36 36 |
17 19 19 22 22 22 24 24 27 30 30 36 36 46 46 50 50 50 60 60 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 20512-XX-XX.
