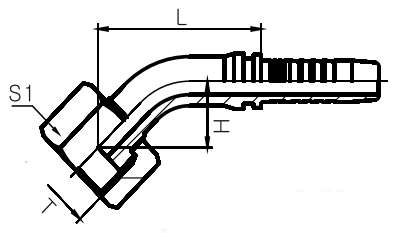

45° bend metric internal thread plane reference REF.GB/T9065.3
| Code PART NO. |
Thread T | Hose Bore | Dimensions | |||
| THREAD T | Nominal Inner Diameter DN | Dash Number | L | H | S1 | |
| 20241-14-04T 20241-14-05 20241-16-05T 20241-16-06 20241-18-06T 20241-22-08T 20241-27-10T 20241-30-12T 20241-39-16T 20241-45-20T 20241-52-24T 20241-60-28T 20241-64-32T |
M14X1.5 M14X1.5 M16X1.5 M16X1.5 M18X1.5 M22X1.5 M27X1.5 M30X1.5 M39X2 M45X2 M52X2 M60X2 M64X2 |
6 8 8 10 10 13 16 19 25 32 38 45 51 |
4 5 5 6 6 8 10 12 16 20 24 28 32 |
37 41 42 45 46 53 65 70 84 94.5 110 118.5 128 |
13.5 17.5 18.5 19 20 21.5 25.5 27.5 29.7 34 41 43.6 45.5 |
17 19 19 22 22 27 32 36 46 55 60 70 75 |
Note: 1. The codes in the table are used for braided hoses. 2. If used for wrapped hoses, change the code to 20242-XX-XX.
