Product Description

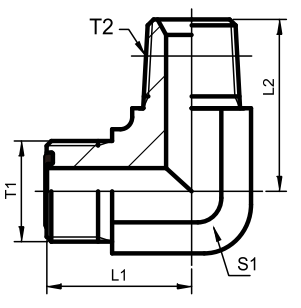

90° Elbow ORFS Male O-Ring / NPT Male

PART NO.	THREAD		DIMENSIONS			WEIGHT	WORKING PRESSURE
	T1	T2	L1	L2	1	g
1FN9-04-02 1FN9-04 1FN9-06-04 1FN9-06 1FN9-06-08 1FN9-08-06 1FN9-08 1FN9-08-12 1FN9-10-08 1FN9-10-12 1FN9-12-08 1FN9-12 1FN9-12-16 1FN9-16-12 1FN9-16 1FN9-20-16 1FN9-20 1FN9-24	9/16″X18 9/16″X18 11/16″X16 11/16″X16 11/16″X16 13/16″X16 13/16″X16 13/16″X16 1″X14 1″X14 1.3/16″X12 1.3/16″X12 1.3/16″ X12 1.7/16″X12 1.7/16″X12 1.11/16″X12 1.11/16″X12 2“X12	NPT1/8″X27 NPT1/4″X18 NPT1/4″X18 NPT3/8″X18 NPT1/2″X14 NPT3/8″X18 NPT1/2″X14 NPT3/4″X14 NPT1/2″X14 NPT3/4″X14 NPT1/2″X14 NPT3/4″X14 NPT1″X11.5 NPT3/4″X14 NPT1“X11.5 NPT1″X11.5 NPT1.1/4″X11.5\| NPT1.1/2″X11.5\|	21.5 21.5 25 25 29.5 28 31 33.3 33.5 36 37.3 37.3 41 42 42 45 45 48.8	20.5 25.5 27.5 31 37.5 31 37 40.5 40 40.5 40.5 45.5 50 46 50.5 54.5 60 67	14 14 19 19 22 19 22 27 27 27 30 30 33 36 36 41 41 48	33 43 61 84 112 95 114 170 172 216 228 275 363 360 433 530 574 972	34.5 27.5 27.5 21 21 21 21 17 21 17 21 17 14 17 14 14 8 7
