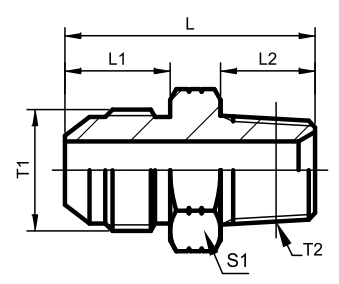

JIC Male 74° Cone / NPT Male
| PART NO. | THREAD | DIMENSIONS | WEIGHT | WORKING PRESSURE | ||||
| T1 | 2 | L1 | L2 | L | 1 | g | ||
| 1JN-04-02 1JN-04 1JN-04-06 1JN-04-08 1JN-05-04 1JN-05-06 1JN-05-08 1JN-06-04 1JN-06 1JN-06-08 1JN-0B-04 1JN-08-06 1JN-08 1JN-08-12 1JN-10-06 1JN-10-08 1JN-10-12 1JN-12-08 1JN-12 1JN-12-16 1JN-12-20 1JN-14-12 1JN-16-12 1JN-16 1JN-16-20 1JN-16-24 1JN-20-16 1JN-20 1JN-20-24 1JN-24-20 1JN-24 1JN-24-32 1JN-32 1JN-32-24 |
7/16″X20 7/16″X20 7/16″X20 7/16″X20 1/2″X20 1/2″X20 1/2″X20 9/16″X 18 9/16″X18 9/16″X18 3/4″X16 3/4″X16 3/4″X16 3/4″X16 7/8″X14 7/8″X14 7/8″X14 1.1/16″X12 1.1/16″X12 1.1/16″X12 1.1/16″X12 1.3/16″X12 1.5/16″X12 1.5/16″X12 1.5/16″X12 1.5/16″X12 1.5/8″X12 1.5/8″X12 1.5/8″X12 1.7/8″X12 1.7/8″X12 1.7/8″X12 2.1/2″X12 2.1/2″X12 |
NPT1/8″X27 NPT1/4″X18 NPT3/8″X18 NPT1/2″X14 NPT1/4″X18 NPT3/8″X18 NPT1/2″X14 NPT1/4″X18 NPT3/8″X18 NPT1/2X14 NPT1/4″X18 NPT3/8″X18 NPT1/2″X14 NPT3/4″X14 NPT3/8″X18 NPT1/2″X14 NPT3/4″X14 NPT1/2″X14 NPT3/4″X14 NPT1″X11.5 NPT1.1/4″X11.5 NPT3/4″X14 NPT3/4″X14 NPT1″X11.5 NPT114″X115 NPT1.1/2″X115 NPT1″X11.5 NPT1.14X11.5 NPT1.12″X11.5 NPT1.14″X115 NPT112″X11.5 NPT2″X11.5 NPT2″X11.5 NPT1.12″X11.5 |
14 14 14 14 14 14 14 14.1 14.1 14.1 16.7 16.7 16.7 16.7 19.3 19.3 19.3 21.9 21.9 21.9 21.9 22.6 23.1 23.1 23.1 23.1 24.3 24.3 24.3 27.5 27.5 27.5 33.9 33.9 |
10.5 15 16 19.5 15 16 19.5 15 16 19.5 15 16 19.5 19.5 16 19.5 19.5 19.5 19.5 25.5 26.5 19.5 19.5 25.5 26.5 27.5 25.5 26.5 27.5 26.5 27.5 27.5 27.5 27.5 |
31 36 36 43 36 37 43 36.5 36.5 42.9 39 39 44 47 43.5 48 49.5 52.3 52.3 57.1 61.5 53 53.5 58.5 62.5 65.5 61.5 62.2 67 67.3 68 72 79 78.5 |
12 17 19 22 17 19 22 17 19 22 22 22 24 30 24 24 30 30 30 36 46 32 36 36 46 50 46 46 50 50 50 65 65 65 |
18 30 39 74 32 42 75 33 41 73 56 60 80 125 80 93 127 142 147 213 358 170 206 242 370 468 343 385 492 475 501 747 903 930 |
34.5 27.5 21 27.5 21 21 21 27.5 21 21 27.5 21 21 17 21 21 17 21 17 14 8 17 17 14 8 7 14 8 7 8 7 5 5 7 |
