Product Description

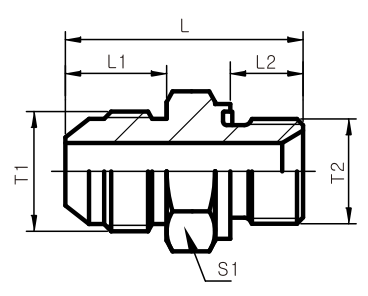

JIC Male 74° Cone / Metric Thread Male Captive Seal

PART NO.	THREAD		DIMENSIONS				WEIGHT	WORKING PRESSURE
	T1	T2	L1	L2	L	1	g
1JM-04-10WD 1JM-05-12WD 1JM-06-14WD 1JM-06-16WD 1JM-08-16WD 1JM-08-18WD 1JM-10-18WD 1JM-10-22WD 1JM-12-22WD 1JM-12-27WD 1JM-16-33WD 1JM-20-42WD	7/16″X20 1/2″X20 9/16 18 9/16″X18 3/4″X16 3/4″X16 7/8″X14 7/8″X14 1.1/16″X12 1.1/16″X12 1.5/16″X12 1.5/8″X12	M10X1 M12X1.5 M14x1.5 M16X1.5 M16X1.5 M18X1.5 M18X1.5 M22X1.5 M22X1.5 M27X2 M33X2 M42X2	14 14 14.1 14.1 16.7 16.7 19.3 19.3 21.9 21.9 23.1 24.3	8 12 12 12 12 12 12 14 14 16 18 20	31 33.5 33.5 35.1 37.6 39.1 41.7 42.9 45.5 49 51.6 54.9	14 17 19 22 22 24 24 27 27 32 41 50	22 30 36 50 60 70 85 100 108 162 245 381	34.5 34.5 34.5 34.5 31 31 24 24 24 24 21 17
