Product Description

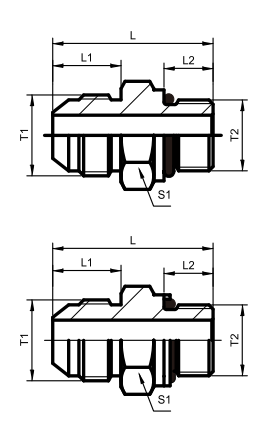

JIC Male 74° Cone / BSP Male O-Ring

PART NO.	THREAD		DIMENSIONS				WEIGHT	WORKING PRESSURE
	T1	T2	L1	L2	–	1	g
1JG-04-02 1JG-04 1JG-04-06 1JG-04-08 1JG-05-04 1JG-05-06 1JG-06-04 1JG-06 1JG-06-08 1JG-08-04 1JG-08-06 1JG-08 1JG-08-12 1JG-10-06 1JG-10-08 1JG-12-08 1JG-12 1JG-12-16 1JG-16-12 1JG-16 1JG-16-20 1JG-20 1JG-24-20 1JG-24	7/16″X20 7/16″X20 7/16″X20 7/16″X20 1/2″X20 1/2″ 20 9/16″X18 9/16X18 9/16″X18 3/4″X16 3/4″X16 3/4″X16 3/4″X16 7/8-X14 7/8″X14 1.1/16″X12 1.1/16″X12 1.1/16″X12 1.5/16″X12 1.5/16″ 12 1.5/16″X12 1.5/8″X12 1.7/8″X12 1.7/8″X12	G1/8″X28 G1/4″X19 G3/8″X19 G1/2″X14 G1/4″X19 G3/8″X19 G1/4″X19 G3/8″X19 G1/2″X14 G1/4″X19 G3/8″X19 G1/2″X14 G3/4″X14 G3/8″X19 G1/2″X14 G1/2″X14 G3/4″X14 G1″X11 G3/4″X14 G1″X11 G1.1/4″X11 G1.1/4″X11 G1.1/4″X11 G1.1/2″X11	14 14 14 14 14 14 14.1 14.1 14.1 16.7 16.7 16.7 16.7 19.3 19.3 21.9 21.9 21.9 23.1 23.1 23.1 24.3 27.5 27.5	8 12 12 14 12 12 12 12 14 12 12 14 16 12 14 14 16 18 16 18 20 20 20 22	28.7 32 33 38.6 32 33 32 33 38.6 35 36 41.4 42.4 39.1 43.9 46.7 47.5 42.6 47.5 53.6 55.1 56.9 60.4 61	14 19 22 27 19 22 19 22 27 19 22 27 36 24 27 27 36 41 36 41 50 50 50 55	23 30 42 92 32 45 31 45 94 48 60 108 136 78 118 135 168 160 188 295 356 404 453 491	34.5 34.5 31.5 31.5 34.5 31.5 34.5 31.5 31.5 31 31 31 20 24 24 24 20 20 20 20 20 17 14 14

Note: If the retaining ring is required, please add “DQ” after the code, such as 1JG-16-20DQ.
