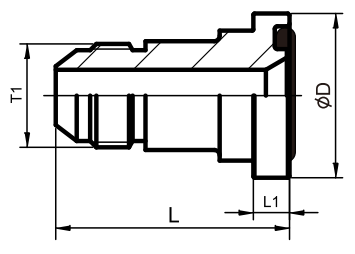

JIC Male 74° Cone / L-Series Flange ISO 6162-1
| PART NO. | THREAD | FLANGE SIZE | DIMENSIONS | WEIGHT | WORKING PRESSURE | ||
| T1 | L1 | D | L | g | |||
| 1JFL-08 1JFL-08-12 1JFL-10-08 1JFL-10-12 1JFL-12-08 1JFL-12 1JFL-12-16 1JFL-16-12 1JFL-16 1JFL-16-20 1JFL-20-16 1JFL-20 1JFL-20-24 1JFL-24-20 1JFL-24 1JFL-24-32 1JFL-32 |
3/4″X16 3/4″X16 7/8″X14 7/8″X14 1.1/16″X12 1.1/16″X12 1.1/16″X12 1.5/16″X12 1.5/16″X12 1.5/16″ 12 1.5/8″X12 1.5/8″X12 1.5/8″X12 1.7/8″X12 1.7/8″X12 1.7/8″X12 2.1/2″X12 |
1/2″ 3/4″ 1/2″ 3/4″ 1/2″ 3/4″ 1″ 3/4″ 1″ 1.1/4″ 1″ 1.1/4″ 1.1/2″ 1.1/4″ 1.1/2″ 2″ 2″ |
6.73 6.73 6.73 6.73 6.73 6.73 8 6.73 8 8 8 B B 8 8 9.53 9.53 |
30.2 38.1 30.2 38.1 30.2 38.1 44.4 38.1 44.4 50.8 44.4 50.8 60.3 50.8 60.3 71.4 71.4 |
43.5 45.4 48 48 49 50.5 52.2 52 53.4 52.2 54.5 53.1 56 56.5 59.2 60 66.3 |
103 130 127 150 167 196 234 254 290 316 376 398 472 471 547 657 1002 |
34.5 24 24 24 24 24 21 21 20 17 17 17 14 14 14 10.5 10.5 |
